Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole

Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole

Nom de marque:

Savantec

Numéro de modèle:

Sv-bo

Nous contacter
Demandez un devis
Détails du produit
Nom de produit:
Outils de déburring intégrale
Marque déposée:
Savantec
Couleur:
Argent
Matériel:
Acier à grande vitesse
Méthode d'emballage:
Boîte en plastique
Origine:
Chine (continentale)
Revêtement:
Non (peut être ajouté)
Personnaliser:
Oui
Port de dépêche:
Shanghai
Conditions de paiement et d'expédition
Quantité de commande min
10
Conditions de paiement
T / t
PRODUITS CONNEXES
Nous contacter
Contactez-nous maintenant
Description du produit

Savantec 6.35-10.31 high-speed steel one pass deburring Single edged deburring tool for inner hole





product description



Deburring holes is usually a costly and time-consuming operation. The back sides of holes are particularly difficult, as they are frequently inaccessible with conventional deburring tools.



The BO deburring tool, often referred to as a burr removal tool or deburring equipment, is a specialized tool used to remove burrs from the surface of workpieces after machining operations. Burrs are small protrusions or sharp edges that can form on metal parts during cutting, drilling, grinding, or other machining processes.



Savantec deburring Tool Products offers you a better way to get rid of those troublesome burrs. Savantec deburring tools remove burrs on the front, back, or both sides of drilled holes in one pass. . . fast, easy, and economical solutions for your hole-deburring problems!



The burr off tool comes in both inches and metric sizes,ranging from holes as small as 0.8mm to 5.56mm. Savantec Tools have both single and double edges deburring tools, as well as titanium nitride coating and custom measurements as per request. Contact Savantec Tools for competitive pricing. In portable power tools – no need for replicated fixtures, and no special operator skills are required.




product specification



Standard tool   Unit:mm
ORDER CODE DRILL HOLE SHANK D SHAND d OAL DIM.A DIM.B DIM.D Recommand REV
SV-BO-0.8 0.8-0.9 3 0.7 45 1 1.5 1.05 1800
SV-BO-0.9 0.9-1.0 3 0.8 45 1 1.5 1.2 1800
SV-BO-1.0 1.0-1.1 3 0.9 45 1 1.5 1.35 1800
SV-BO-1.1 1.1-1.2 3 1 45 1 1.5 1.5 1800
SV-BO-1.2 1.2-1.3 3 1.1 45 1 1.5 1.65 1800
SV-BO-1.3 1.3-1.4 3 1.2 45 1 1.5 1.8 1800
SV-BO-1.4 1.4-1.5 3 1.3 45 1 1.5 1.95 1800
SV-BO-1.5 1.5-1.6 3 1.4 50 2 2.5 2.1 1500
SV-BO-1.6 1.6-1.7 3 1.5 50 2 2.5 2.25 1500
SV-BO-1.7 1.7-1.8 3 1.6 50 2 2.5 2.4 1500
SV-BO-1.8 1.8-1.9 3 1.7 60 2 2.5 2.55 1500
SV-BO-1.9 1.9-2.0 3 1.8 60 2 2.5 2.65 1500
SV-BO-2 2.0-2.2 3 1.9 60 2 2.5 2.8 1500
SV-BO-4 2.2-2.4 3 2 80 2 2.5 3.15 1500
SV-BO-5 2.4-2.6 3 2.1 80 2 2.5 3.45 1500
SV-BO-6 2.6-2.8 3 2.2 80 2 2.5 3.7 1500
SV-BO-7 2.8-3.18 2.75   101.6 3.18 4.45 4.00 1200
SV-BO-8 3.18-3.55 3.15   101.6 3.18 4.45 4.34 1200
SV-BO-9 3.55-3.96 3.58   101.6 3.18 4.45 4.74 1200
SV-BO-10 3.96-4.36 3.9   101.6 3.18 4.45 5.54 1200
SV-BO-11 4.36-4.74 4.34   101.6 3.18 4.45 5.94 1200
SV-BO-12 4.74-5.15 4.72   101.6 3.18 6.22 6.35 1200
SV-BO-13 5.15-5.56 5.13   101.6 3.18 6.22 6.78 1200
SV-BO-14 5.56-5.94 5.54   101.6 6.48 6.22 7.92 800-1000
SV-BO-15 5.94-6.35 5.92   101.6 6.48 6.22 8.33 800-1000
SV-BO-16 6.35-6.75 6.32   101.6 6.48 6.22 8.71 800-1000
SV-BO-17 6.75-7.13 6.73   101.6 6.48 6.22 9.12 800-1000
SV-BO-18 7.13-7.54 7.11   101.6 6.48 6.22 9.53 800-1000
SV-BO-19 7.54-7.95 7.52   101.6 6.48 6.22 9.91 800-1000
SV-BO-20 7.95-8.33 7.92   101.6 7.24 6.48 10.31 800-1000
SV-BO-21 8.33-8.71 8.31   101.6 7.24 6.48 10.72 800-1000
SV-BO-22 8.71-9.11 8.69   101.6 7.24 6.48 11.1 800-1000
SV-BO-23 9.11-9.52 9.09   101.6 7.24 6.48 11.51 800-1000
SV-BO-24 9.52-9.90 9.5   112.7 8 6.48 12.7 800-1000
SV-BO-25 9.90-10.31 9.88   112.7 8 6.48 13.08 600

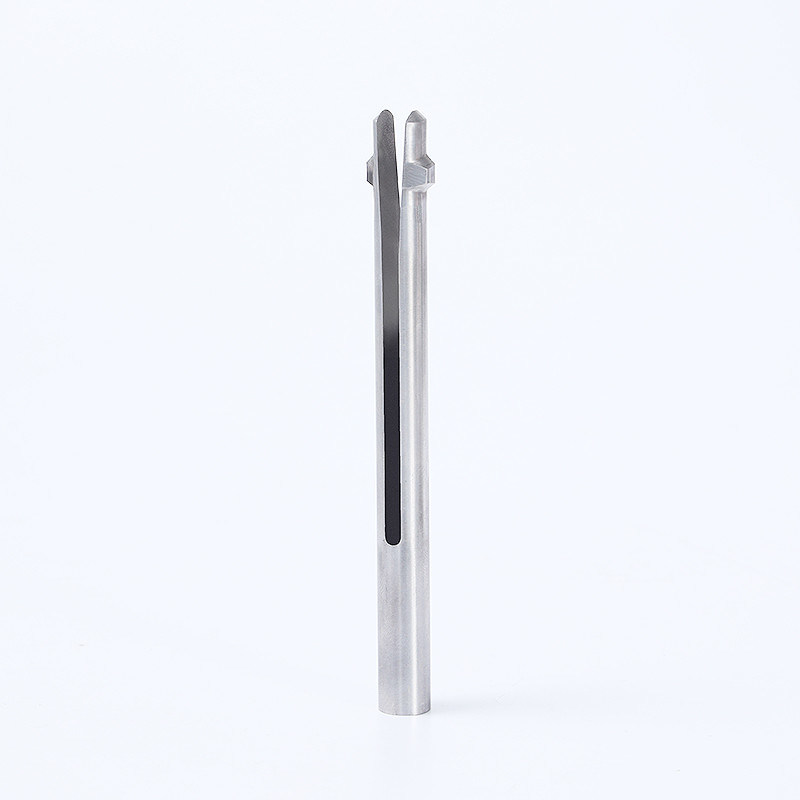

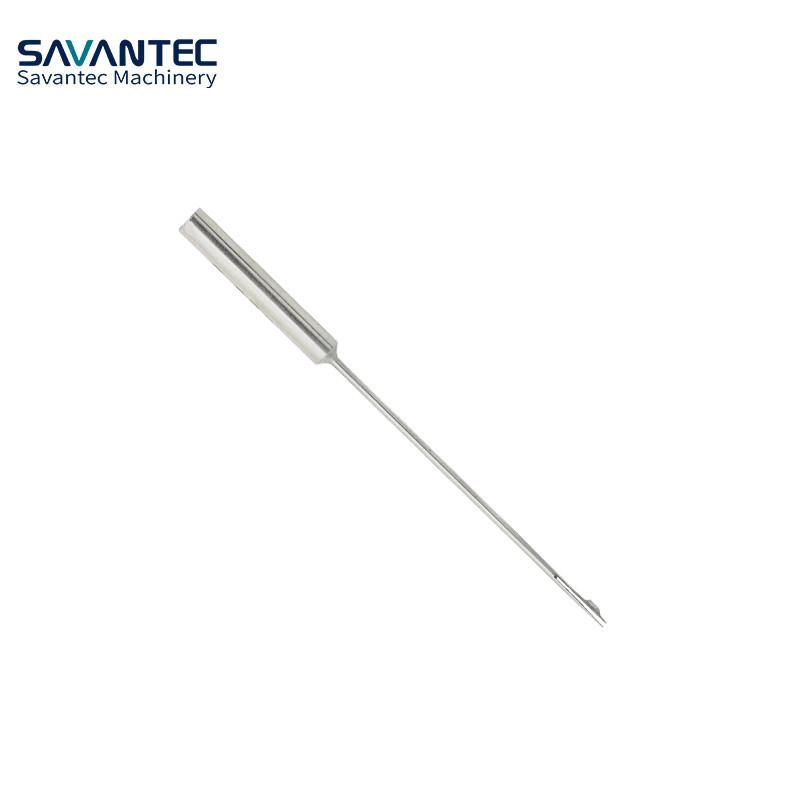

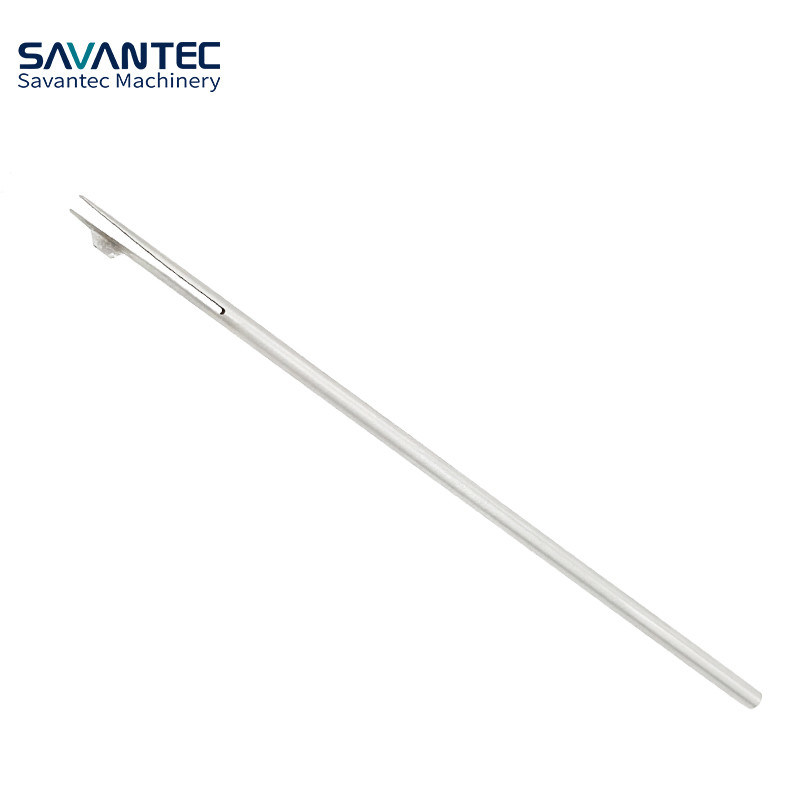

product image



Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole 0
